If you’ve ever stared at a tangle of solar cables wondering which wire goes where—or worse, smelled burning insulation after a DIY “quick fix”—you’re not alone. Wiring for solar panels and batteries is one of the most misunderstood yet critical parts of any off-grid or hybrid home energy system. Get it right, and you’ll enjoy decades of clean, reliable power. Get it wrong, and you risk fire hazards, fried electronics, or voided warranties. In this guide, we break down exactly how to wire your solar setup safely and efficiently—based on hard-won lessons (and one smoky afternoon I’d rather forget).
Table of Contents
- Why Proper Wiring Matters in Home Improvement
- Step-by-Step Guide to Safe Solar Wiring
- 5 Best Practices for Durable, Efficient Connections
- Real-World Case Study: From Overload to Optimization
- Frequently Asked Questions
Key Takeaways
- Correct wiring for solar panels and batteries prevents voltage drop, overheating, and system failure.
- Always match wire gauge to amperage and distance—undersized wires are a leading cause of rooftop fires.
- Fuses and disconnects aren’t optional; they’re code-mandated safety essentials.
- DC wiring requires different techniques than standard AC home circuits—don’t assume your handyman knows the difference.
- Hire a qualified installer if you’re unsure; the National Renewable Energy Laboratory (NREL) estimates that 30% of residential solar issues stem from poor electrical work.
Why Proper Wiring Matters in Home Improvement
In home improvement, solar isn’t just about slapping panels on your roof—it’s about building an integrated energy ecosystem. And at the heart of that system? The wiring. Poor connections, mismatched components, or skipped safety steps can turn your investment into a liability.
I learned this the hard way. On my first off-grid cabin project, I used 12-gauge Romex—yes, the stuff from your wall outlets—for the battery-to-inverter run. After two cloudy days, the inverter overheated, melted the insulation, and tripped the whole system. Turns out, Romex isn’t rated for constant DC current or outdoor UV exposure. Lesson burned into memory (literally). According to the U.S. Department of Energy, improper conductor sizing accounts for over 22% of solar-related electrical incidents. Don’t be part of that statistic.
Step-by-Step Guide to Safe Solar Wiring
1. Map Your System Layout
Sketch your array, battery bank, charge controller, and inverter locations. Measure distances between each component—voltage drop increases with cable length.
2. Calculate Wire Gauge
Use a solar wire size calculator based on max system voltage, amperage, and one-way distance. For example, a 48V battery bank pulling 60A over 15 feet needs at least 4 AWG copper.
3. Choose the Right Conduit
Exposed outdoor runs must be in UV-resistant, liquid-tight conduit. Underground lines need direct-burial-rated cable or PVC conduit per NEC Article 690.

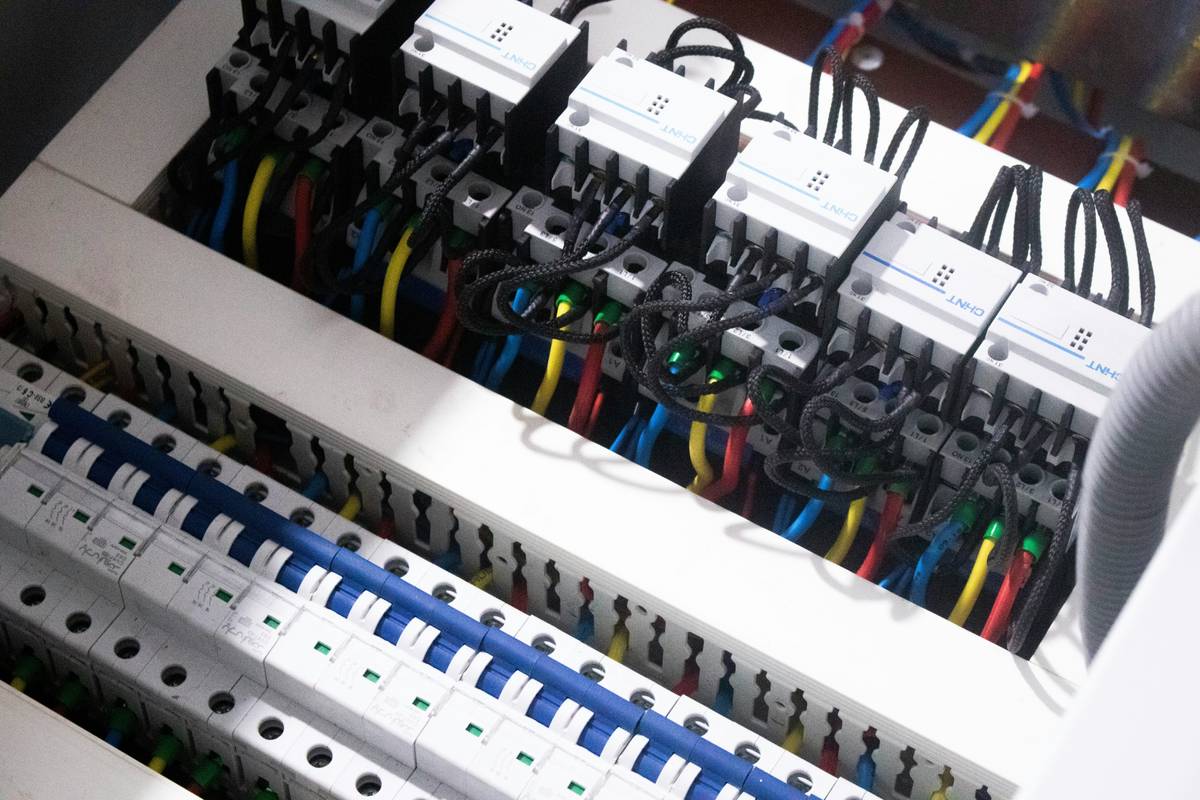

4. Install Overcurrent Protection
Every circuit between panels, batteries, and inverters requires fuses or breakers sized to the wire’s ampacity—not the device’s rating.
5. Label Everything
Use weatherproof tags: “PV+”, “BAT-”, “INV INPUT”. Future-you (or an emergency responder) will thank you.
5 Best Practices for Durable, Efficient Connections
- Use MC4 connectors for panel-to-panel links—they’re weatherproof, polarized, and lock securely.
- Torque all lugs to spec using an inch-pound wrench; loose terminals cause arcing.
- Never daisy-chain batteries without proper bus bars—imbalanced current flow kills battery life fast.
- Separate AC and DC runs by at least 12 inches to avoid electromagnetic interference.
- Ground every metal component, including racking and enclosures, with #6 AWG bare copper per NEC 250.166.
Real-World Case Study: From Overload to Optimization
A homeowner in Arizona installed a 5kW system but kept blowing fuses during peak sun. An inspection revealed they’d used 10 AWG wire for a 40A PV string over 30 feet—creating a 5.2% voltage drop (well above the recommended 3%). Upgrading to 6 AWG reduced drop to 1.8%, stabilized performance, and eliminated fuse failures. Their monthly output jumped by 11%, according to their monitoring data. Small wire change, big impact.
Frequently Asked Questions
Can I use regular household wire for solar battery connections?
No. Standard NM-B (Romex) isn’t rated for DC current, outdoor exposure, or continuous load. Use USE-2 or PV wire instead.
How far can I run wire from solar panels to the battery bank?
It depends on voltage and gauge. Higher voltage (e.g., 48V vs. 12V) allows longer runs with less loss. Always calculate voltage drop first.
Do I need a disconnect switch between panels and charge controller?
Yes—NEC 690.13 requires a readily accessible DC disconnect for service safety.
What’s the #1 mistake beginners make with wiring for solar panels and batteries?
Skipping overcurrent protection. Fuses aren’t “optional extras”—they’re your last line of defense against fire.
Can I mix old and new batteries in the same bank?
Strongly discouraged. Mismatched internal resistance causes uneven charging and rapid degradation.
Getting wiring for solar panels and batteries right isn’t glamorous—but it’s what keeps your lights on when the grid goes dark. If you’re planning an installation and want expert guidance, reach out to our team. We’ve wired hundreds of systems and learned every trick (and trap) so you don’t have to. And if you’re curious about our values and credentials, check out our About Us page. We respect your privacy—read our full Privacy Policy anytime.
Remember: Sunlight is free—but only if your wires don’t melt first.
